电缆软管卷筒

电缆软管卷筒

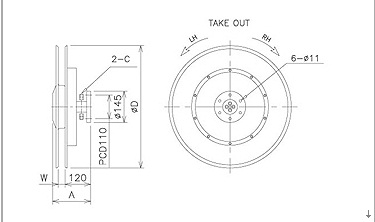

RH Type Twin Hose Reel

-Used for telescopic boom of construction vehicles.
-divided in Single hose type, Twin hose type and Four way hose type according to use.
-high quality is needed because of taking out and rewinding under high pressure, we produce this reel with best quality.






MODEL
Hose Specification
Length(M)
Working pressure(kg/㎠)
A
C
D
W
RH-610TW
SYNFLEX Ø6.4 ×Ø12.7 × Twin
10
195
205
PT 1/4
500
32
RH-615TW
SYNFLEX Ø6.4 ×Ø12.7 × Twin
15
195
205
PT 1/4
550
32
RH-620TW
SYNFLEX Ø6.4 ×Ø12.7 × Twin
20
195
205
PT 1/4
650
32
RH-625TW
SYNFLEX Ø6.4 ×Ø12.7 × Twin
25
195
205
PT 1/4
700
32
RH-630TW
SYNFLEX Ø6.4 ×Ø12.7 × Twin
30
195
205
PT 1/4
760
32
RH-910TW
SYNFLEX Ø9.5 ×Ø17.5 × Twin
10
210
220
PT 3/8
550
43
RH-915TW
SYNFLEX Ø9.5 ×Ø17.5 × Twin
15
210
220
PT 3/8
650
43
RH-920TW
SYNFLEX Ø9.5 ×Ø17.5 × Twin
20
210
220
PT 3/8
760
43

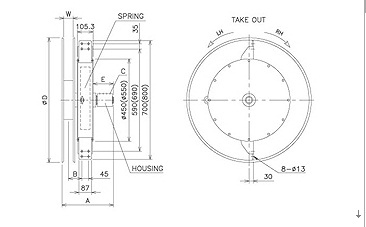

RH-B Type Fourway Hose Reel

-Used for telescopic boom of construction vehicles.
-divided in Single hose type, Twin hose type and Four way hose type according to use.
-high quality is needed because of taking out and rewinding under high pressure, we produce this reel with best quality.




MODEL
Hose Specification
Length(M)
Working pressure(kg/㎠)
A
C
D
W
RH-630TW-B
SYNFLEX Ø6.4 ×Ø12.7 × Twin
30
195
286
PT 1/4
760
32
RH-640TW-B
SYNFLEX Ø6.4 ×Ø12.7 × Twin
40
195
286
PT 1/4
860
32
RH-925TW-B
SYNFLEX Ø9.5 ×Ø17.5 × Twin
25
210
296
PT 3/8
860
45
RH-930TW-B
SYNFLEX Ø9.5 ×Ø17.5 × Twin
30
210
296
PT 3/8
950
45
RH-940TW-B
SYNFLEX Ø9.5 ×Ø17.5 × Twin
40
210
296
PT 3/8
1050
45
RH-625-4WB
SYNFLEX Ø6.4 ×Ø12.7 × Twin
25
195
350
PT 1/4
760
63
RH-630-4WB
SYNFLEX Ø6.4 ×Ø12.7 × Twin
30
195
350
PT 1/4
760
63
RH-640-4WB
SYNFLEX Ø6.4 ×Ø12.7 × Twin
40
195
350
PT 1/4
860
63
RH-925-4WB
SYNFLEX Ø9.5 ×Ø17.5 × Twin
25
210
360
PT 3/8
860
75
RH-930-4WB
SYNFLEX Ø9.5 ×Ø17.5 × Twin
30
210
360
PT 3/8
950
75

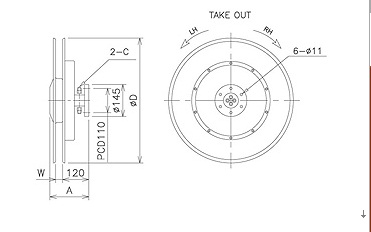

RH Type Outrigger Hose Reel





MODEL
Hose Specification
Length(M)
Working pressure(kg/㎠)
A
C
D
W
RHE-603TW
SYNFLEX Ø6.4 ×Ø12.7
3
195
202
PT 1/4
320
32
RHE-605TW
SYNFLEX Ø6.4 ×Ø12.7
5
195
202
PT 1/4
320
32
RHE-608TW
SYNFLEX Ø9.5 ×Ø12.7
8
195
202
PT 1/4
320
32
